Water Purifiers

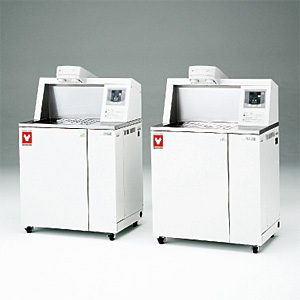

WA500/570/710/730 |
 |
WA500/570/710/730 have been discontinued.
 |
Large-capacity type to supply highly pure water with a single motion.
These models employ microproccessor automatic control of all processes, from the supplying of water, ion exchange and distillation, to the storage.
| Model |
| 500 |
570 |
710 |
730 |
| Water Purification Method |
Distillation -> Ion exchange
Distillation -> Filtration |
| Purified Water |
Distilled water /
Ion-exchange water |
| Distilled Water Capacity |
| 5.0 L/h |
10 L/h |
| Purified Water |
| Distilled water 1.4 L/min |
Ion-exchange water
1.4 L/min |
|
|
 |
- They feature a number of devices for direct production of large
amounts of distilled water and deionized water.
- They also include a number of devices with many functions
that guarantee high purity of water, as well as 2 methods of
production of deionized water.
- The operation panel has high operability such as arbitrary
setting of amount of water supplied, single key-stroke system
and a water quality monitor indigital form which permits you
to check the water quality easily.
- lt is easy to exchange the ion-exchange resin cartridge.
|
 Specifications |
| |
WA500 |
WA570 |
WA710 |
WA730 |
| Performance |
| Water purification method |
Distillation -> Ion-exchange -> Filtration |
| Purified water |
Distilled water, Deionized water |
| Distilled water capacity |
Approx. 5 L/Hr. |
Approx. 10 L/Hr. |
| Collection of Distilled water |
Approx. 1. 4/1.6 liter/ min. (50/60Hz) |
| Collection of Ion exchange water |
Approx. 1. 4/1.5 liter/ min. (50/60Hz) |
| Components |
| Boiler |
Stainless steel |
| Condenser |
Stainless steel |
| Heater |
Pipe heater, 1.9kW×2 pcs. |
Pipe heater, 2.55kW×3 pcs. |
| Distilled water storage tank |
Polyethylene made, 60 liter |
| Raw water filter |
Pre-treatment cartridge (activated carbon + hollow fiber membrane, 0.1μm) |
| Pure water filter |
Membrane filter (hollow fiber membrane, 0.1μm) |
| Ion-exchanger |
One-touch connecting type cartridge (mixed floor type, 3 liter) |
| Water quality monitor |
Temperature automatic compensation, digital display
Disply are switch types electric conductivity and the resistivity
0.05 to 300×10-4S/m.25deg.C (Conductance)
18 to 0.1×104Ω.m.25deg.C (Resistivity) |
| Distilled water tank level display |
Display on LED in 5 steps |
| Range of collection capacity |
0.1 to 99.9 L (0.1 L/step) |
| Feeding pump |
Electromagnetic pump |
| Standard |
| Raw water pressure range |
1 to 5×100kPa (1 to 5kg /cm2) |
| Power source 50/60Hz |
100V, single phase,
40A |
200/220V, single phase,
20/18A |
200/220V, single phase,
40/37A |
200/380V, three phase,
30/16A |
| External dimensions(W×D×Hmm) |
903×603×1, 430 |
| Weight |
Approx. 120 kg |
| Accessories |
| |
Water supply hose -- 2m×1 pc. (with connecting unit), Drain hose -- 3m×1 pc. (with hose clamp), Detergent -- 1kg,
Pre-treatment cartridge -- 1 pc. Ion-exchange resin -- 1 pc. Membrane filter-- 2 pcs. |
|
|
| Control
panel |
System Diagram |
 |
 |
| |
| Structure |
 |
| |
| Inner View |
 |

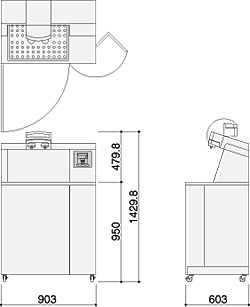

| Dimensional drawing (mm) |
 |
| Optional
items |
| Description |
Model No. |
Product Code |
| Supply Water Unit OWH10 |
WS200/220, WG35/510/710/730, WA200/500/570/710/730 |
253686 |
| Connection Unit G (WL100 Autostill) |
WG510/710/730, WA500/570/710/730 |
253668 |
| Sampling Hose Connection Unit OWF |
WG510/710/730, WA500/570/710/730 |
253208 |
| High Purity Catridge CPC-H |
WA500/570/710/730 |
CPCNS30011 |
| Drain Trap OWI20 |
WG35, WG510, WA570 |
253212 |
| Drain Trap OWI40 |
WG710, WA500/710 |
253214 |
| Drain Trap OWI50 |
WG730, WA730 |
253215 |
| Pretreatment Catridge ACF0827 |
WG510/710/730, WA500/570/710/730 |
9020030003 |
| Ion exchange resin catridge CPC-N |
WA500/570/710/730 |
CPCN30010 |
| Membrane filter MFRL730 |
WG510/710/730, WA500/570/710/730 |
9020010006 |
|
|
|
